Large Arrow Board

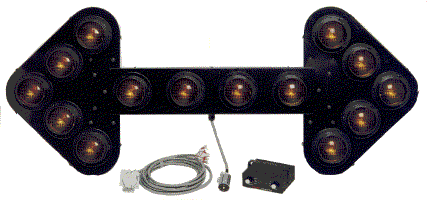

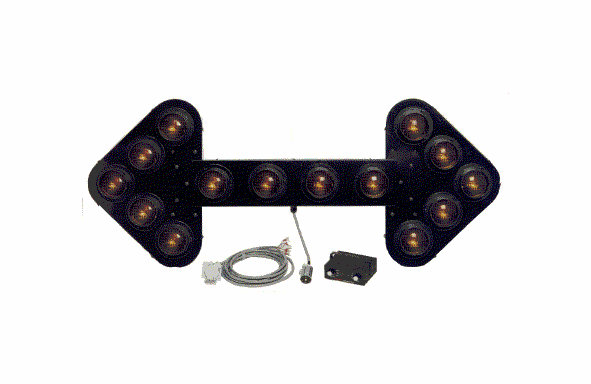

Features: • The Large Arrow Board comes with a control box, heavy- duty cables and plug-in connector. • Fourteen 4" diameter sealed-beam lamps flash in five operational modes. Lamps flash in a progressive sequential pattern in the right arrow, left arrow and double arrow modes. Lamps flash simultaneously in the center bar and four corner caution modes. • Choose from incandescent lamps, Standard LED PAR 36 lights with 16 high-intensity LEDS, or Ultra-Bright LED PAR lights with 52 high-intensity LEDS. • All lamps are shock-mounted and weather-sealed. High- impact plastic Sun Shields increase visibility up to 1/2 mile. • The cab-mounted, 3-relay control box has on/off and mode selection switches, pilot lights that indicate flash patterns, and day/night intensity settings. It connects easily to the Arrow Board with a 20' pre-wired harness and comes with a bale mounting bracket and all necessary wiring. • Frame construction is of heavy-gauge epoxy-coated aluminum. • Fourteen threaded inserts in the Arrow Board frame accommodate a variety of mounting applications. Specifications: • 12 volt control box • Maximum amp draw: 20 amps • Dimensions: Controller 2 1/4" H x 6" W x 5 1/8" D Arrow Board 24" H x 60" W x 2 1/2" D Not including Sun Shields • Weight: 28 lbs.
