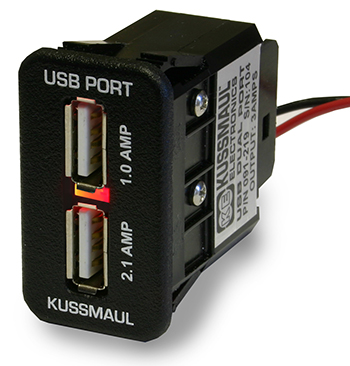

Kussmaul USB Dual Charging Port for Switch Panels - 091-219, this is discontinued and the replacement is 091-219-5 with 2 ports at 2.4 amps each
The 091-219-5 Dual USB Charging Port is designed to fi t into a standard 1.45” x 0.83” panel cutout. Connect the red wire to either +12 Volts continuous (battery positive) or switched 12 Volt power (ignition) using a 3 Amp fuse. Connect the black wire directly to chassis ground (battery negative).
Features:
Dual USB Charging Ports
Quick and easy way to recharge electronic devices in a vehicle
3 Amps max output allows charging of both an IPad and IPhone at the same time
Built-In LED Indicator indicates device is powered
Designed for easy installation in vehicle switch panels
Reverse polarity protected
Can be connected to 12V switched ignition or directly to battery
3 year warranty
Specifications:
Input: 11-16 Vdc, 1.5 Amps Max
Output: 5.0 Vdc, 3 Amps Max
Indicator: Device Powered: Red LED
Cut-Out-Size: 1.45" x .83"
Weight: .25 lbs
Warranty: 3 Years
