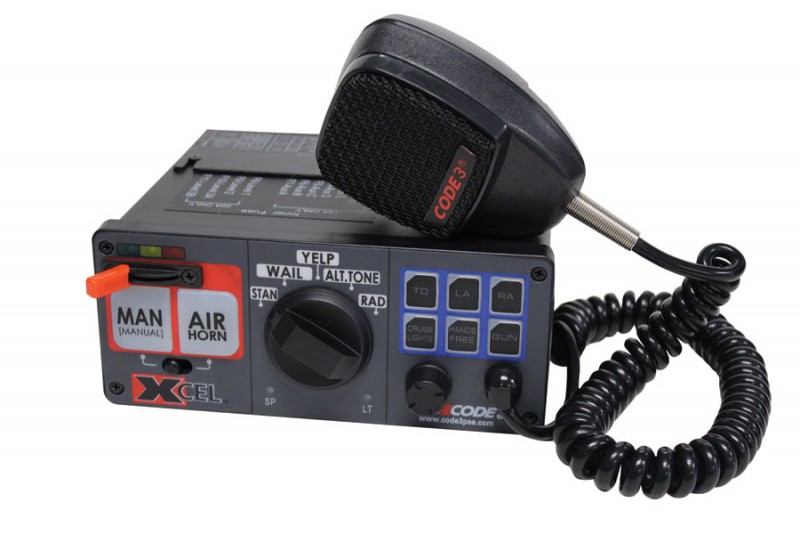

Code 3 XCEL Siren 3492L6

Designed and Manufactured in the USA, the XCEL siren offers a host of new features that were designed to make it easy for the officer to use as well as for the installer and service technicians to install

XCEL at Programming:
• 3-Level slide switch can be programmed as independent, semi-progressive, or progressive giving you more options when configuring your siren
• Unique programming features including latching of Auxiliary buttons to level outputs allow the officer to keep their eyes on the road for longer periods of time
• Backlighting on buttons can be adjusted to the officer's preference
• Program CA T13 compliance with the flip of a switch

XCEL at Installing:
• Positive or Negative Park-Kill and Horn-Ring Transfer triggers allow for easy installation on all vehicle types
• Visual notification of switching and programming functions makes for easy installation and service
• Plug 'n Play fuses and connections make for easy installation and service

XCEL at Troubleshooting:
• Constant visual identification test of speaker integrity and lighting functions make for the fastest siren diagnostics on the market

Design Features
• 12 and 24 volt sirens now available!
• 5 Rotary Switch Positions, Standby (STBY), Wail, Yelp, Alt Tone, and Radio Rebroadcast (RAD)
• Oversized Manual Wail and Air Horn Buttons
• 6 Programmable Auxiliary Buttons
• 11 Built-in Automotive Style Fuses
• 12 Dip Switches for Configuring
• Plug 'n Play Input/Output Connectors
• Wail, Yelp, and Alt Tone (Hyper-Yelp or Hi-Lo)
• Aux Button F can be 8 second or on/off
• Aux Button E can be configured Hands-Free and works with Horn-Ring Transfer
• 3-Level Switch can be split into 3A and 3B for Park-Kill Application
• Horn Ring Transfer, Horn Ring Always, and Hands Free Mode
• Light Alert
• Siren Must be Used with Ignition

Standard Options
• Plug-in Microphone or hard wired version
• Siren only version available

General Specifications
• Size: 6 1/2" W x 2 3/4" H x 5 9/16" D (165 mm x 69.85 mm x 141.3 mm)
• Weight: 3.5 lbs
• Operating Voltage: 12 Volt: 10-16 VDC - 24 Volt: 20-30 VDC
• Output Capacity: 100W or 200W
• Compliance: SAE J1849, 2004/104/EC, and California Title 13
• 3 Level Switch Current: Level 1, Level 2, Level 3A, Level 3B, capable of 15 Amp each for combined total of 50 Amp
• Auxiliary Switches: Aux A - Aux F capable of 10 Amp each
• 5-Year Warranty

General Specifications
• Size: 6 1/2" W x 2 3/4" H x 5 9/16" D (165 mm x 69.85 mm x 141.3 mm)
• Weight: 3.5 lbs
• Operating Voltage: 12 Volt: 10-16 VDC - 24 Volt: 20-30 VDC
• Output Capacity: 100W or 200W
• Compliance: SAE J1849, 2004/104/EC, and California Title 13
• 3 Level Switch Current: Level 1, Level 2, Level 3A, Level 3B, capable of 15 Amp each for combined total of 50 Amp
• Auxiliary Switches: Aux A - Aux F capable of 10 Amp each
• 5-Year Warranty
