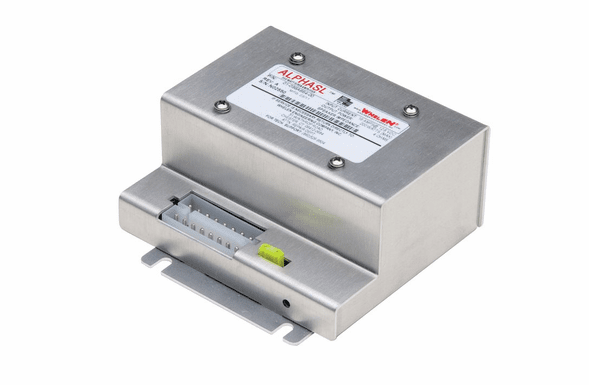

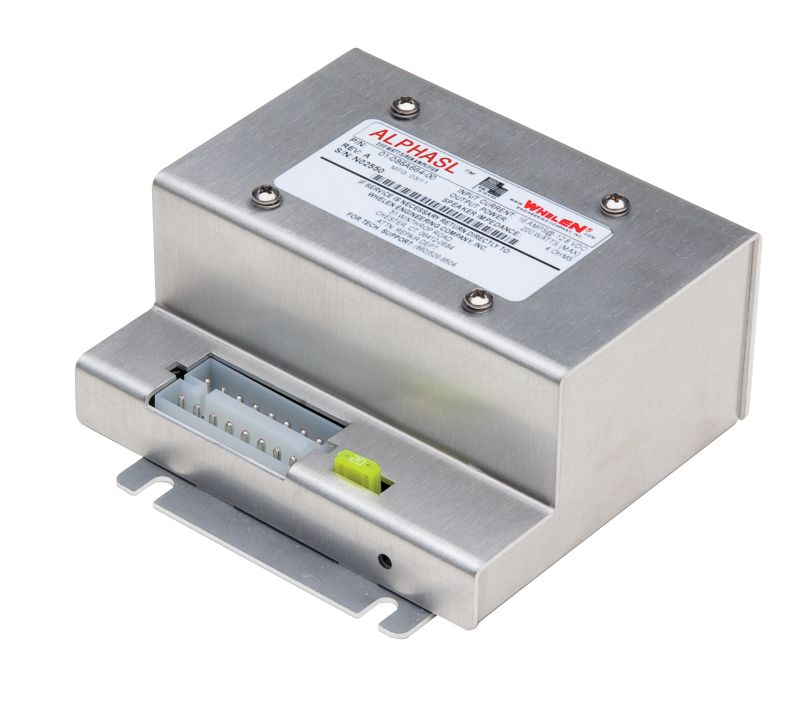

Whelen AlphaSL Remote Siren

Whelen AlphaSL Remote Siren

Economy priced ALPHA Sirens deliver 100 and 200 watts of siren warning power, HANDS-FREE operation, multiple warning tones and horn ring over-ridecapability. ALPHA Sirens allow easy set-up and configuration to meet local requirements without special ordering. (Not for Motorcycle Use)

Remote Siren, for use with Remote Switches (Purchased Separately), Selectable Four Tone Hands-Free Siren, For One or Two 100 Watt Speakers

Perfect for police motorcycles.

ALPHASL FEATURES
• Scan-Lock™ feature allows you totoggle through 15 siren tones.
• Operates one or two 100 Watt siren speakers.
• Five optional switch panels available. Will also operate from customer supplied switching controls.
• Compact design is perfect for undercover and volunteer applications.
• Control siren tone through horn ring or separate switches.
• Hands-Free operation lets you cycle through two or three siren tones using horn or auxiliary control.
• Meets Class A requirements with most 100 watt speakers.
• Harmonically rich composite Air Horn tones.
• Output open/short circuit protection.
• Easy to install. Pre-wired with quick disconnect plugs for easy service and fast replacement.
• 12 VDC.
• 24 Month Warranty.

Specifications:
• INPUT VOLTAGE: 12.8 VDC
• POLARITY: Negative ground
• POLARITY PROTECTION: Diode / Fuse
• OUTPUT POWER: 200 Watts
• OUTPUT LOAD: Two 11 OHM speakers
• INPUT CURRENT(OFF): 0 ma
• INPUT CURRENT(SIREN ON): 15 amps (max)
• STANDBY CURRENT: 10 ma (max)
• FUSE: 20 amp
• FUSE MOUNTING: spade type, PC Board
• OUTPUT SHORT PROTECTION: Fuse
• HORN / RING CONTROL: +12VDC or ground
• WEIGHT: 2.4 lbs / 1.2 kg
• OPERATING TEMPERATURE: 30°C TO +60°C
• OPERATING HUMIDITY: 0-95% Non-condensing
• SIZE -Height: 2 1/4" (54mm) H
• Width: 4 3/4" (120mm) W
• Depth: 5” (127mm) D

Recommended switch options

MODEL DESCRIPTION
ALPHA1 Single On/Off Switch for use with Hands-Free Operation
ALPHA2 Single On/Off Hands-Free Activation Plus Momentary Switch for Air Horn
ALPHA3 TONE 1/Off/TONE 2 Switch Operation Plus Momentary Switch for Air Horn
ALPHA4 Three Switch Operation, One On/Off, One TONE 1/Hands-Free/TONE 2, One Momentary Switch for Airhorn
ALPHA5 3 Position Toggle Switch, Controls 3 Siren Tones and other Warning Lights or Device Functions. Contacts Rated at 30 Amps
