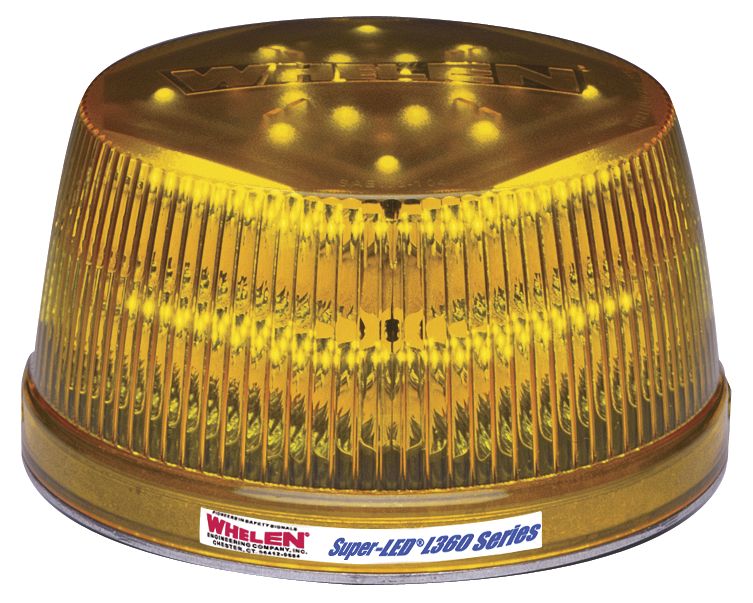

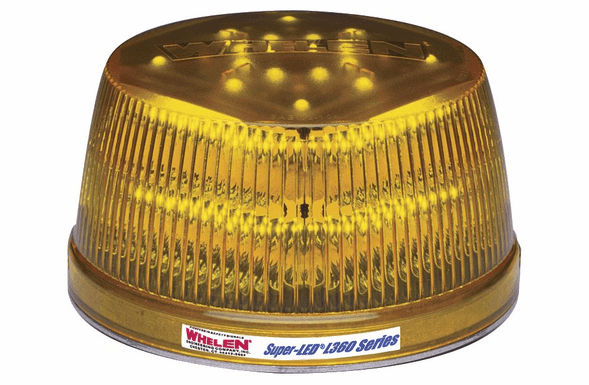

Whelen L31HAF Series Super-LED Amber

Whelen L31HAF Series Super-LED Amber

• UV coated dome
• Powder-coated cast aluminum base
• 100% solid-state
• Conformal coated electronics
• Full reverse polarity protection
• Hard-coated domes minimize environmental damage from sand, sun, salt, and road chemicals
• Available in permanent, magnetic, or magnetic/suction mount models
• Available in Red, Blue, Amber, and White
• Rated for thousands of hours of use

Specifications
• 12 VDC
• Five year warranty
• 4 Amp (peak), 1.6 Amp (average)
• SAE Class 1 Certified in Amber and Blue
• California Title XIII Certified in Amber (L31HA_CA models), Blue and Red
• 4" (102mm) H x 7 3/16" (182mm) W

Call or email for other colors or mounting options.

Available L31 Models

Model Desc Part #
L31H1M - L31 SUPER-LED MAGNETIC MOUNT AMBER/CLEAR - 01-0685953-1MF
L31H5F4 - L31 SUPER-LED FLAT MOUNT R/C 24V - 01-068595325FF
L31HBM4 - L31 SUPER-LED MAGNETIC MOUNT BLUE 24V - 01-06859532BMF
L31HCF - L31 SUPER-LED FLAT MOUNT WHITE - 01-0685953-3FF
L31H5F - L31 SUPER-LED FLAT MOUNT RED/CLEAR - 01-0685953-5FF
L31HAV - L31 SUPER-LED VACUUM MOUNT AMBER - 01-0685953-AVF
L31HFC - L31 SUPER-LED FLAT MOUNT AMBER/WHT - 01-0685953CFFF
L31HGF - L31 SUPER-LED FLAT MOUNT GREEN - 01-0685953-GFF
L31HRFN - L31 SUPER-LED FLAT MOUNT RED NFPA - 01-0685953NRFF
L31H2F4 - L31 SUPER-LED FLAT MOUNT B/C 24V - 01-068595322FF
L31HAM4 - L31 SUPER-LED MAGNETIC MOUNT AMBER 24V - 01-06859532AMF
L31H2M - L31 SUPER-LED MAGNETIC MOUNT BLUE/CLEAR - 01-0685953-2MF
L31H4F - L31 SUPER-LED FLAT MOUNT GREEN/CLEAR - 01-0685953-4FF
L31HAF - L31 SUPER-LED FLAT MOUNT AMBER - 01-0685953-AFF
L31HBM - L31 SUPER-LED MAGNETIC MOUNT BLUE - 01-0685953-BMF
L31HMF - L31 SUPER-LED FLAT MOUNT AMBER/BLUE - 01-0685953CMFF
L31HGV - L31 SUPER-LED VACUUM MOUNT GREEN - 01-0685953-GVF
L31HRM - L31 SUPER-LED MAGNETIC MOUNT RED - 01-0685953-RMF
L31HAFCA - L31 TITLE XIII FLAT MOUNT AMBER - 01-0687947-AF0
L31H1F - L31 SUPER-LED FLAT MOUNT AMBER/CLEAR - 01-0685953-1FF
L31HCF4 - L31 SUPER-LED FLAT MOUNT WHT 24V - 01-068595323FF
L31HBF4 - L31 SUPER-LED FLAT MOUNT BLUE 24V - 01-06859532BFF
L31HRF4 - L31 SUPER-LED FLAT MOUNT RED 24V - 01-06859532RFF
L31H4M - L31 SUPER-LED MAGNETIC MOUNT GREEN/CLEAR - 01-0685953-4MF
L31HAM - L31 SUPER-LED MAGNETIC MOUNT AMBER - 01-0685953-AMF
L31HBV - L31 SUPER-LED VACUUM MOUNT BLUE - 01-0685953-BVF
L31HPF - L31 SUPER-LED FLAT MOUNT AMBER/GREEN - 01-0685953CPFF
L31H5FN - L31 SUPER-LED FLAT MOUNT RED NFPA - 01-0685953N5FF
L31HRV - L31 SUPER-LED VACUUM MOUNT RED - 01-0685953-RVF
L31HAMCA - L31 TITLE XIII MAGNETIC MOUNT AMBER - 01-0687947-AM0
L31H1F4 - L31 SUPER-LED FLAT MOUNT A/C 24V - 01-068595321FF
L31HAF4 - L31 SUPER-LED FLAT MOUNT AMBER 24V - 01-06859532AFF
L31H2F - L31 SUPER-LED FLAT MOUNT BLUE/CLEAR - 01-0685953-2FF
L31HCM - L31 SUPER-LED MAGNETIC MOUNT WHITE - 01-0685953-3MF
L31H5M - L31 SUPER-LED MAGNETIC MOUNT RED/CLEAR - 01-0685953-5MF
L31HBF - L31 SUPER-LED FLAT MOUNT BLUE - 01-0685953-BFF
L31HKF - L31 SUPER-LED FLAT MOUNT AMBER/RED - 01-0685953CKFF
L31HGM - L31 SUPER-LED MAGNETIC MOUNT GREEN - 01-0685953-GMF
L31HRF - L31 SUPER-LED FLAT MOUNT RED - 01-0685953-RFF
