Introducing the Micron™ Super-LED Light head from Whelen Engineering. The Micron™ Series is the smallest and most durable Super-LED® lighting product on the market today. At just over 4" wide, these versatile surface mount lightheads are designed to withstand harsh environments and tough applications while providing intense light almost anywhere.
The low profile warning light incorporates six red Super-LEDs with a clear optic hard coated polycarbonate lens and utilize a TIR reflector for maximum output. The hard coated lens provides extended life/luster protection against UV and chemical stresses. The conformal coated PC board and sealed lens/reflector assembly provides additional protection against environmental elements. The solid state warning lights are vibration resistant. The self-contained flashing light has 25 Scan-Lock™ flash patterns including synchronize feature and steady burn. The Whelen Micron will contain a 6”unterminated pigtail. The horizontal surface mount includes a black mounting flange and hardware.
Features:
Available in single color: Red, Blue, Amber or White.
Surface mount flange included, available in Black or Chrome.
25 Scan-Lock™ flash patterns including steady-burn.
Integrate with other Whelen products through our ‘synchronize’ feature.
Directional light pattern.
Supplied with a 6” 4-wire pigtail.
Specifications:

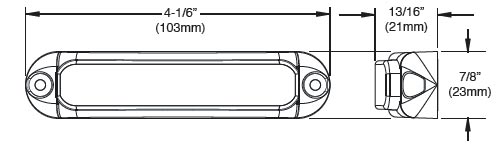

4.04" Wide, 0.825" Deep, 0.890" High
0.6 amps average at 12.8 VDC.
Meets or exceeds SAE J595, NFPA 1901, and KKK1822F specifications
Five Year HDP® Heavy Duty Professional Warranty
