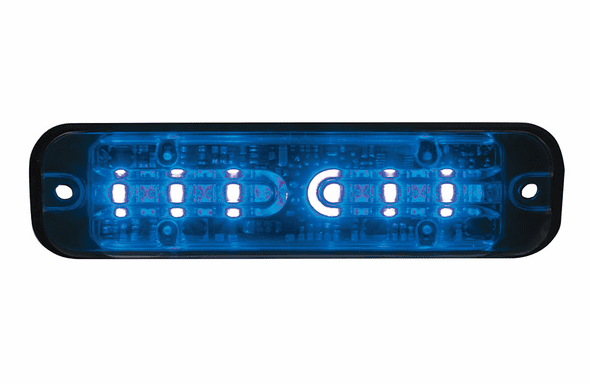

Code 3 Mega Thin TRI Color LED Light Head

Code 3 Mega Thin TRI Color LED Light Head
Provides a sleek, low-profile design that allows for easy installation in a variety of locations.
Delivers a bright, powerful off-angle performance with curved end optics.
The Mega Thin is available in 6 LED solid and split colors, 12 LED multicolor, as well as 18 LED tricolor.

Design Features
Single color available in amber, blue, white, green, and red LEDs available in solid.
Split color red/blue, amber/blue, red/white, green/white, blue/white, green/amber, red/amber.
Multicolor available in amber/blue, amber/red, amber/white, amber/green, blue/white, red/blue, and red/white configurations.
Tricolor available in blue/amber/white, red/amber/white, red/blue/amber, and red/blue/white configurations.
6 LED single color featuring 29 flash patterns.
12 LED multicolor featuring 69 flash patterns.
18 LED tricolor featuring 24 flash patterns per color mode configuration.
Syncs with Code 3’s Chase™, MR6, and M180™ exterior lights.
Curved end optics for better off-angle performance.
Electronics are fully encapsulated.
Clear lens.
Black die cast base.
Phase 1 and phase 2 synching.

Specifications
1.23” H x 4.73” W x 0.46” D (31 x 120 x 12 mm).
12/24VDC.
0.8 max ampere draw.
9 average watts.
SAE J595 Class 1, California Title 13, ECE R65 Class 1, ECE R10 certified, and IP67.
5-year warranty.

Many models and options available, please call 800-666-6200 or email sales@swps.com for more info.

Standard
Model Description
ULT6-A 6 LED Mega Thin Surface Mount, 12-24V, Amber
ULT6-B 6 LED Mega Thin Surface Mount, 12-24V, Blue
ULT6-W 6 LED Mega Thin Surface Mount, 12-24V, White
ULT6-G 6 LED Mega Thin Surface Mount, 12-24V, Green
ULT6-R 6 LED Mega Thin Surface Mount, 12-24V, Red
ULT6-BA 6 LED Mega Thin Surface Mount, 12-24V, Blue/Amber
ULT6-AW 6 LED Mega Thin Surface Mount, 12-24V, Amber/White
ULT6-AG 6 LED Mega Thin Surface Mount, 12-24V, Amber/Green
ULT6-RA 6 LED Mega Thin Surface Mount, 12-24V, Red/Amber
ULT6-BW 6 LED Mega Thin Surface Mount, 12-24V, Blue/White
ULT6-RB 6 LED Mega Thin Surface Mount, 12-24V, Red/Blue
ULT6-RW 6 LED Mega Thin Surface Mount, 12-24V, Red/White

MultiColor
Model Description
ULTMC-BA 12 LED Mega Thin Surface Mount, 12-24V, Blue/Amber
ULTMC-AW 12 LED Mega Thin Surface Mount, 12-24V, Amber/White
ULTMC-AG 12 LED Mega Thin Surface Mount, 12-24V, Amber/Green
ULTMC-RA 12 LED Mega Thin Surface Mount, 12-24V, Red/Amber
ULTMC-BW 12 LED Mega Thin Surface Mount, 12-24V, Blue/White
ULTMC-RB 12 LED Mega Thin Surface Mount, 12-24V, Red/Blue
ULTMC-RW 12 LED Mega Thin Surface Mount, 12-24V, Red/White

Tricolor
Model Description
ULTTC-BAW 18 LED, Mega Thin tricolor LED, surface mount, 12/24 volt blue/amber/white
ULTTC-RAW 18 LED, Mega Thin tricolor LED, surface mount, 12/24 volt red/amber/white
ULTTC-RBA 18 LED, Mega Thin tricolor LED, surface mount, 12/24 volt red/blue/amber
ULTTC-RBW 18 LED, Mega Thin tricolor LED, surface mount, 12/24 volt red/blue/white

Accessories / Brackets Option
Model Description
UPRRBKT-PIU Spoiler bracket for the PI Utility (and other rear spoilers) using the Mega Thin (ULT), MR6, M180 or XT4 Light
UPGMB-PIU Ford PI Utility (2016+) Custom Fit Grill Light Brackets (pairs)
XT4 Brackets Can be mounted anywhere an XT4 can (see XT4 page for compatible brackets)
