The Whelen® Vertex™ is a
small semi-hemispheric
LED lighthead and is perfect
for most applications
where size and intensity
are critically important.
Self-contained unit using
an in-line combination
lamp driver/flasher. Only 7/8" in height.
Sold Individually - Price is per light
Features:
Ultra small, self contained,
semi-hemispheric LED light,
for surface mount or internal
mount within composite head
lamps, cornering lamps and
tail light assemblies.
25 Scan-Lock™ flash patterns,
includes synchronize
feature for alternating and
synchronous flashing of
multiple lamps.
New lens technology enhances
light distribution for optimum
dispersion and intensity of the
warning signal at critical angles.
Includes pre-wired and sealed
9' neoprene cable to the
lighthead and lamp driver, with
4-22 gauge power, pattern
and sychronize pigtail wires.
Aluminum base and advanced
thermal heat management
system is designed for endless
years of trouble free service.
Lamp and in-line lamp driver
are fully encapsulated for moisture
and vibration resistance.
Omni-directional lighthead
mounts in any position
(orientation), vertically or
horizontally.
Available in red, amber, white
and blue. LED color must
match color of the lens it is
installed behind, except for
clear lens
10 – 16 VDC.
SAE Class 5.
No RFI noise emitted.
Two screws hold the lamp
securely in place.
1" hole make this LED module
backwards compatible to
HA238 and standard 1"
Hide-A-Way style lamps.
Simple installation with no
separate lamp drivers, flashers,
ballast or power supplies
to install.

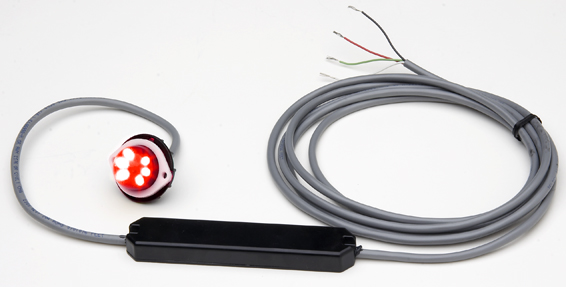

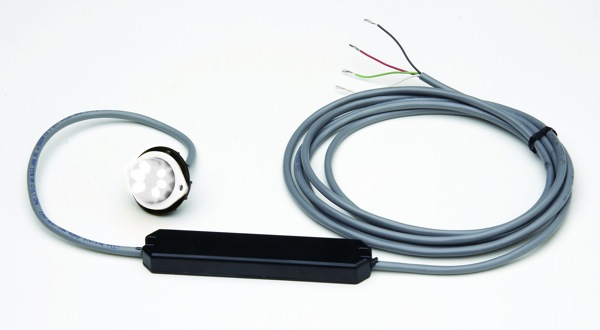

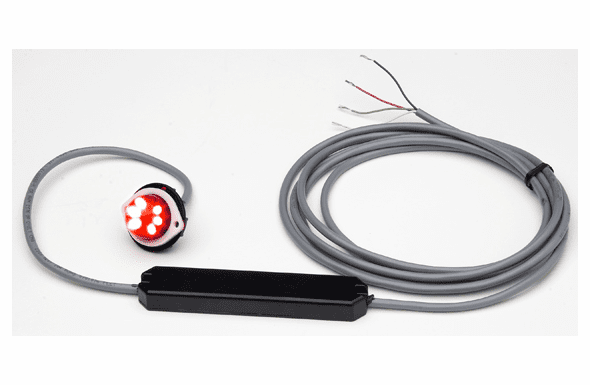

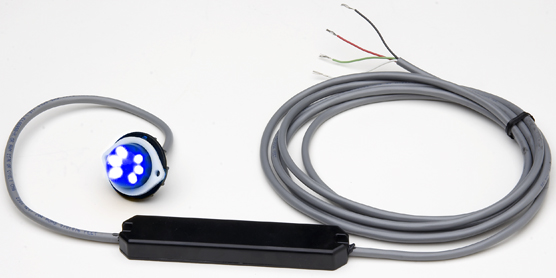

Sold as a single lighthead with 9 foot cable and flasher
