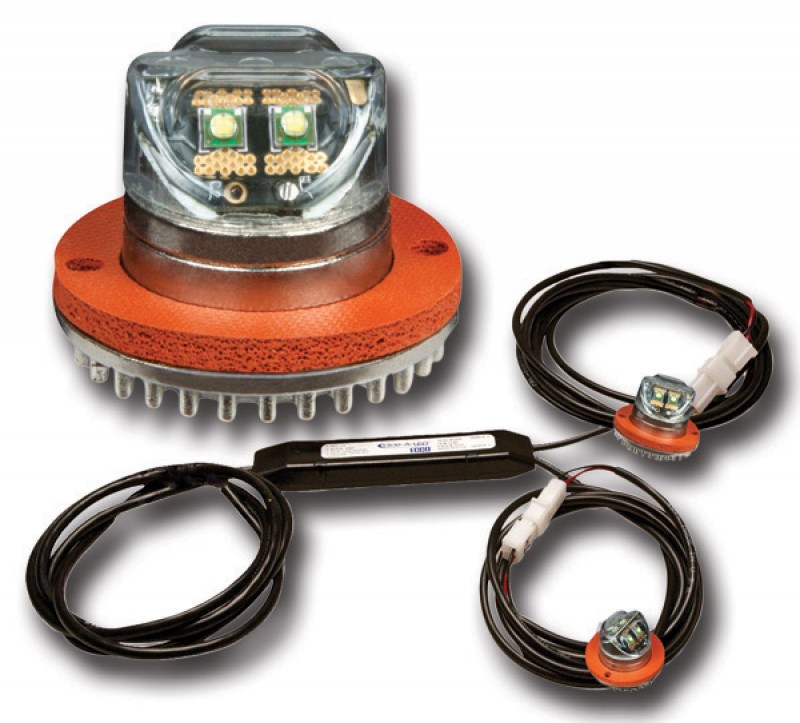

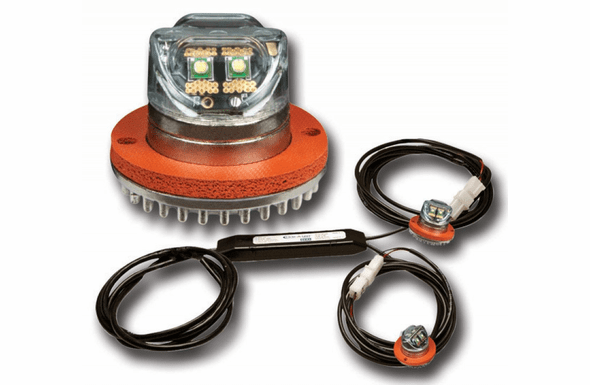

Code 3 PSE Wildcat Hide-A-Blast LED Lighthead
Code 3 PSE Wildcat Hide-A-Blast LED Lighthead
The Wildcat Hide-A-Blast takes 4 bright LEDs and places them in a shorter package to allow installation in tight quarters.
Designed to be installed inside of head and tail lights where space is limited.
Single Head Models:
4 Next-Generation LEDs
Red, Blue, Amber, White LEDs Available
Split Colors Available: Amber/Blue, Amber/Red, Amber/White, Blue/Red, Blue/White, Red/White
16 Flash Patterns
UV Stabilized Polycarbonate Lens
Nickel Plated Housing
Low Profile Mounting Flange
High Current LED Driver
Self-Contained Power Module
In-Line Power Module
9' pre-wired cable
Mounts into 1" hole
Two Head Models:
4 Next Generation LEDs in each head
Red, Blue, Amber, and White LEDs Available
Split Colors Available: Blue/Red
16 Flash Patterns
UV Stabilized Polycarbonate Lens
Pre-wired cable; 7 ft module, 7 ft head A, 4 ft head B
Low profile mounting flange
High current LED driver
Self-contained power module
Specifications
Dimensions: 1.50" W x 0.875" D (38.1 mm x 22.2 mm)
5 Year Warranty on LED Modules
*Note; Single and Dual head models have same specs except two head models come in a pair and share a power module
Blue and White LED Modules
10-30 VDC
0.5A @ 12.8V, 0.2A @ 25.6V
Blue 155+ Lumens
White 660+ Lumens
Red and Amber LED Modules
10-16 VDC
0.25 Amps
Amber 160+ Lumens
Red 123+ Lumens
Split Color LED Modules
10-30 VDC
0.5 AmpsQuestions & Answers about Code 3 PSE Wildcat Hide-A-Blast LED Lighthead
