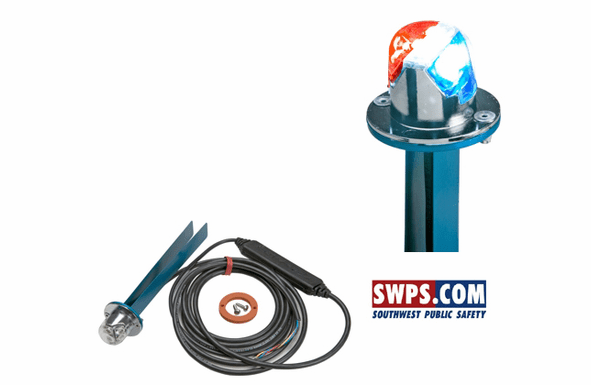

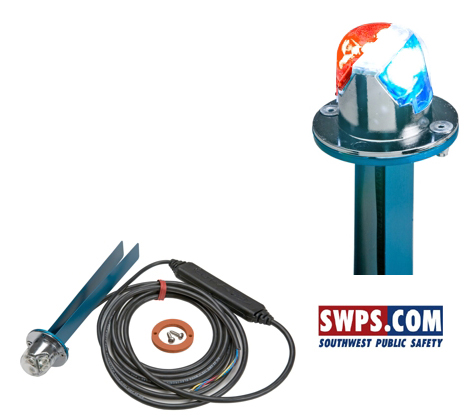

Nova® X1100 Hide-A-LED - Red/White/Blue

Single Lighthead - Split Colors Red, White, and Blue - Three Lights in One!

The Hide-A-LED X1100 is the next-generation of undercover warning signal. The X1100 utilizes the latest LED technology to deliver high-intensity, pure colored LED light blasts where you need them most. The Hide-A-LED X1100 features a state-of-the-art, in-line molded power module that offers maintenance-free operation. The X1100 has an Intergrated Heatsink which must be used to maintain a safe operating temperature. The Intergrated Heatsink can be bent into any shape needed to fit the space available for the application. By combining the power module, cable and LED head, the Hide-A-LED X1100 warning signal eliminates common electrical issues caused by exposure to moisture and reduces installation time to a minimum. Fast installations and trouble-free operation offers fleet managers the additional benefit of less vehicle down-time.

Features: 6 Next-Generation LEDs. UV Stabilized Polycarbonate Lens. Nickel Plated Housing. Low Profile Mounting Flange. High Current LED Driver. Self-Contained Power Module. In-Line Power Module. 9 foot, pre-wired cable. Mounts into 1" hole. 5 Year Warranty Cable Length - 9 FT. LED Elements - 6 Flash Patterns - 16 (8 Standard, 8 optional cycle) Maximum number of synchronized heads - 64 Warranty Period - 5 YEARS

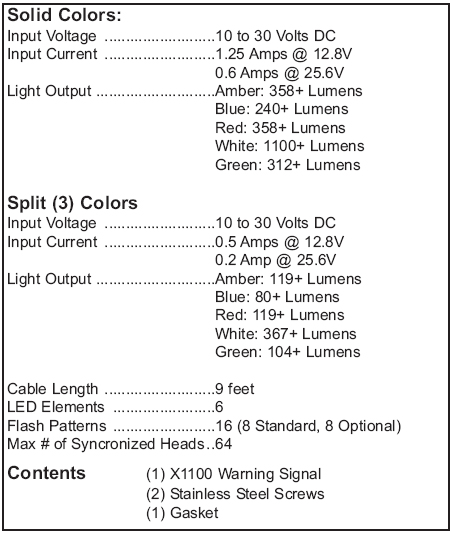

SPLIT: INPUT VOLTAGE: 10 TO 30 VOLTS DC. INPUT CURRENT: 0.5A @ 12.8V, 0.2A @ 25.6V LIGHT OUTPUT: (FOR EACH 2LED SEGMENT) RED: 119+ LUMENS, WHITE: 367+ LUMENS, BLUE: 80+ LUMENS

Please use caution when handling Hide-A-LED after use - heatsink will become hot after running for an extended period. The heat will NOT melt any of the plastic parts of the lens assembly.

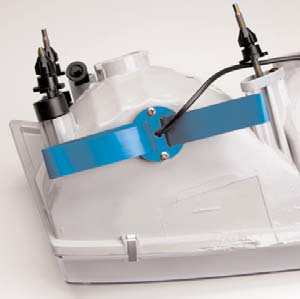

The X1100 has an Integrated Heatsink that must be used to maintain a safe operating temperature. The Integrated Heatsink can be bent into any shape needed to fit the space available for the application. Refer to the Installation Guide for complete instructions.
