Standard Arrow Board w/ Shock-Mounted Lamps

Item Code: 02.6100
Able2 Sho-Me - Standard Arrow Board w/ Shock-Mounted Lamps 02.6100
$600.96$1,092.66
You Save 45%
Availability: Item typically In-StockMore Info 3 to 5 Business Days

Total with selected add-ons:

QTY:


Able2 Sho-Me - Standard Arrow Board w/ Shock-Mounted Lamps 02.6100

Features:

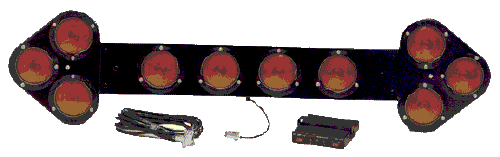

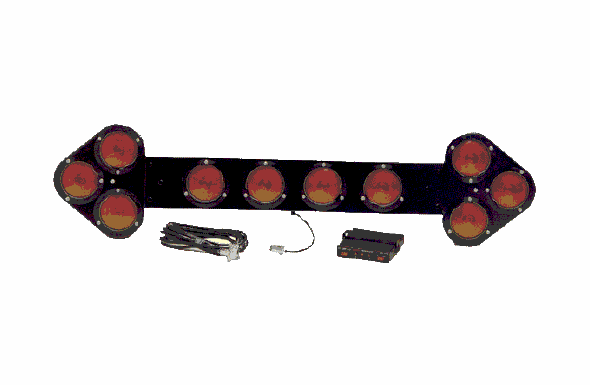

  • Full-size arrow board comes with a control box, heavy-duty cables, plug-in connector and plastic dust cover.
  • Ten 4" diameter amber lamps flash 60 times per minute in four operational modes: right arrow, left arrow, double arrow and center bar.
  • Choose from incandescent lamps, Standard LED PAR 36 lights with 16 high-intensity LEDS, or Ultra-Bright LED PAR lights with 52 high-intensity LEDS.
  • All lamps are available in two installation styles: regular mount or shock-mounted and weather-sealed.
  • Cab-mounted, 3-relay control box has on/off and mode selection switches and pilot lights that indicate flash patterns. It connects easily to the Arrow Board with a 20' pre-wired harness and comes with a bale mounting bracket and all necessary wiring.
  • Boards are constructed of heavy-gauge, epoxy-coated aluminum.
  • Board mounting brackets sold separately.

    Specifications:
    • 12 volt control box
    • Maximum amp draw: 21 amps
    • Dimensions:
    Controller 1 1/4" H x 6" W x 6 1/4" D
    Arrow Board 13" H x 54" W x 3" D
    • Weight:
    Standard Arrow Board w/ Shock Mounted Lamps 8 lbs.
