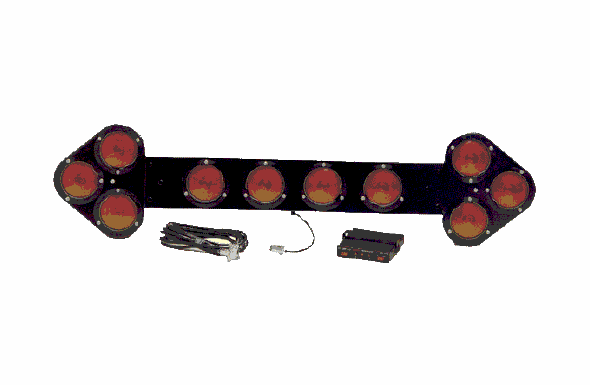

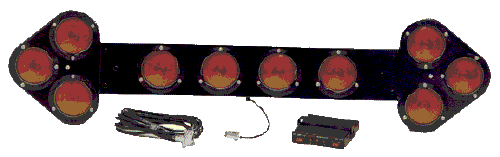

Full-size arrow board comes with a control box, heavy-duty cables, plug-in connector and plastic dust cover.
Ten 4" diameter amber lamps flash 60 times per minute

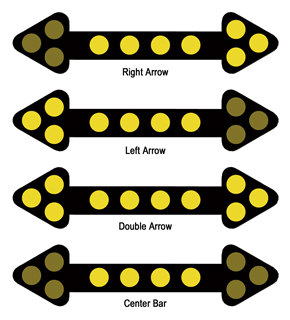

in four operational modes: right arrow, left arrow, double arrow and center bar.
Choose from incandescent lamps, Standard LED PAR 36 lights with 16 high-intensity LEDS, or Ultra-Bright LED PAR
lights with 52 high-intensity LEDS.
All lamps are available in two installation styles: regular mount or shock-mounted and weather-sealed.
Cab-mounted, 3-relay control box has on/off and mode selection switches and pilot lights that indicate flash
patterns. It connects easily to the Arrow Board with a
20' pre-wired harness and comes with a bale mounting
bracket and all necessary wiring.
Boards are constructed of heavy-gauge, epoxy-coated aluminum.
Board mounting brackets sold separately.
Specifications:
• 12 volt control box 27 Watt Lamps
• Maximum amp draw: 21 amps
• Dimensions:
Controller 1 1/4" H x 6" W x 6 1/4" D
Arrow Board 13" H x 54" W x 3" D
• Weight:
Standard Arrow Board 7 lbs.
