Each arrow panel has five 4” diameter Ultra-Bright LED's.
60 FPM in four operational modes:
right arrow, left arrow, double arrow and caution (corner lamps)
Three-relay control box has mode selection switches, flash pattern indicator lights and a 15” pre-wired harness.
All lamps are weather-sealed and shock-mounted.
Heavy-gauge, epoxy-coated aluminum housings
Heavy-duty threaded inserts in each arrow panel permit a variety of mounting applications.
Two-Piece Arrow Boards come with a cab-mounted control box and heavy-duty cables with plug-in connectors.
Arrow board mounting brackets sold separately.
Specifications:
Controller Dimensions: 1¼" H x 6” W x 6¼" D
Arrow Panel Dimensions: 13” H x 24” W x 2½" D

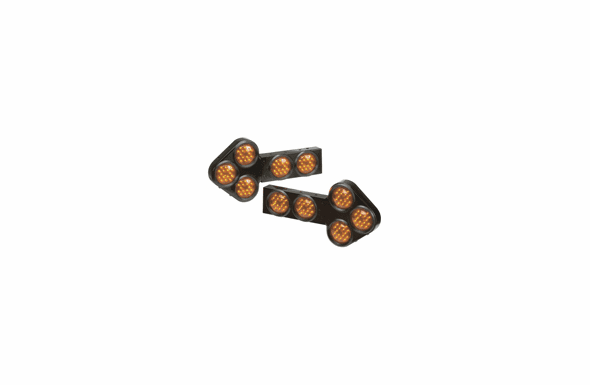

02.6252 Two-Piece Ultra-Bright LED Arrow Board
12 volts / 52 LEDs per lamp
6.5 amps max
Weight: 7 lbs. 11 oz. (each piece)
