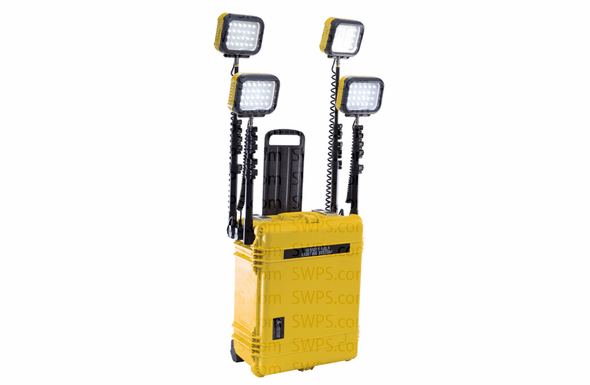

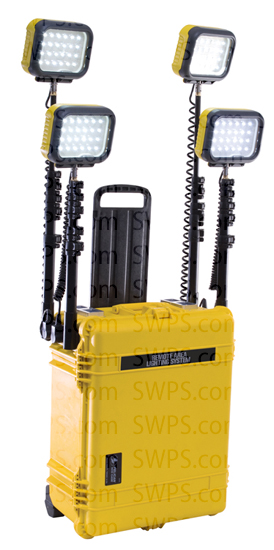

Using solid-state mounted LED's coupled with a thermally efficient light engine and our Pelican Protector™ Case, the RALS 9460 gives the user the ultimate maintenance free portable floodlight station to get the job done efficiently, safely and on time. The RALS 9460 houses four of it's light heads and it's multi-stage charger for that total self contained convenience, it is also equipped with a telescopic handle and rugged wheels for ease of transport.
9470 R.A.L.S. Specifications
Dimensions
Head Length: 6.5" (16.5 cm)
Head Width: 7.87" (20 cm)
Head Depth: 2.56" (6.5 cm)
Width Closed: 22" (55.9 cm)
Length Closed: 19.57" (49.7 cm)
Height Closed: 11.93" (30.3 cm)
Mast Height Extended: 72.85" (185 cm)
Cord Length (Retracted): 13.78" (35 cm)
Weight: 88.18 lbs. (40 kg)
Lamp Type/Brightness Test
LED Type: High Flux LED
LED Life: 50,000 hrs.
Tested Lumen Value: 4000 (Low) 8000 (High)
Brightness Settings: 2
Lamp Heads: 4
Number of LED's: 96
Beam Spread: 90 Degrees
Battery Type/Electrical Power
Battery Type: 12v Rechargeable, Sealed
Battery Burn Time: 14 hours (Low) 7 hours (High)
Battery Charging Time: 8 hours
Battery Life: 2000 Cycles
Low Battery Warning: Intermittent Blinking
12 Volt Primary Sockets: 4
12 Volt Auxiliary Sockets: 1
Watts: 96
Volts: 12
Approvals
RoHS (Restriction of Hazardous Substances) Compliant
