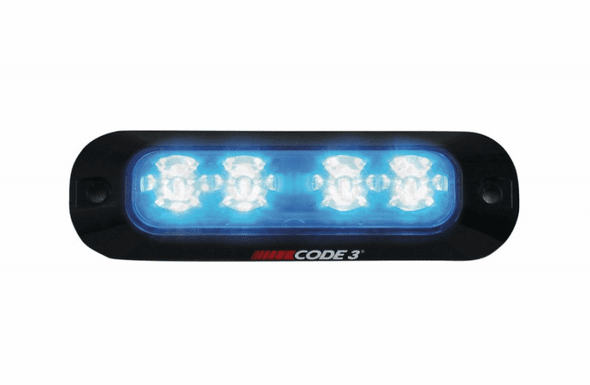

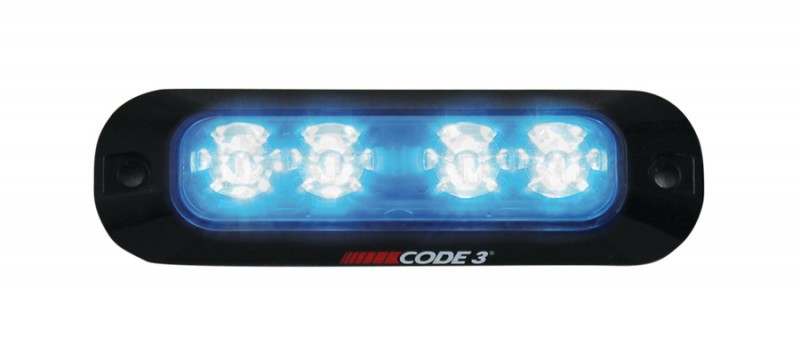

Code 3 XTP4 Multi Color LED XTP4MC

Code 3 XTP4 Multi Color LED XTP4MC
Delivers a bright signal in a sleek, low-profile design.
Allows for placement almost anywhere on the vehicle with its compact, waterproof design.
Provides users with a versatile, high-performance exterior light at an affordable price.

Design Features
Single color available in red, blue, amber, white, and green.
Split and multicolor available in amber/white, blue/amber, blue/white, red/amber, red/blue, and red/white.
Single color XTP4 has 30 flash patterns.
Split color XTP4 has 22 flash patterns.
XTP4MC has 70 flash patterns.
Steady-burn.
Controllable flash pattern output.
Programmable with the Code 3 Lighthead Programmer.
Waterproof IP67 rated.
Syncable with Code 3’s Chase™, MR6, Mega Thin™, and M180™ lights.
Same mounting hole pattern and brackets as the XT lights.
Multiple flash patterns with phase 1 and phase 2 syncing capabilities.

Standard Options
Black bezel standard.
Chrome and black rubber bezels available with single stack.
Chrome bezels available with dual stack.

Specifications
XTP4: 1.4” H x 4.7” L x 0.6” D (36 x 119 x 15 mm).
12VDC.
XTP4 8 max watts.
Temperature range: -40°F to 158°F (-40°C to 70°C).
SAE J595 Class 1, SAE J575, California Title 13, ECE R65, ECE R10, RoHS,
5-year warranty.

Many models and configurations are available, please call 800-666-6200 or email sales@swps.com for more info.

Model Description
XTP4GG XTP single color 4 LED, 12/24 volt, green/green
XTP4AA XTP single color 4 LED, 12/24 volt, amber/amber
XTP4AW XTP split color 4 LED, 12/24 volt, amber/white
XTP4BA Single 4 LED split, 12/24V, blue/amber
XTP4BB XTP single color 4 LED, 12/24 volt, blue/blue
XTP4BW XTP split color 4 LED, 12/24 volt, blue/white
XTP4RA XTP split color 4 LED, 12/24 volt, red/amber
XTP4RB XTP split color 4 LED, 12/24 volt, red/blue
XTP4RR XTP single color 4 LED, 12/24 volt, red/red
XTP4RW XTP split color 4 LED, 12/24 volt, red/white
XTP4WW XTP single color 4 LED, 12/24 volt, white/white

MultiColor
Model Description
XTP4MCRB XTP multicolor 8 LED split, 12/24 volt, red/blue
XTP4MCAB XTP multicolor 8 LED split, 12/24 volt, amber/blue
XTP4MCBW XTP multicolor 8 LED split, 12/24 volt, blue/white
XTP4MCRA XTP multicolor 8 LED split, 12/24 volt, red/amber
XTP4MCAW XTP multicolor 8 LED split, 12/24 volt, amber/white
XTP4MCRW XTP multicolor 8 LED split, 12/24 volt, red/white

Accessories / Brackets Option
Model Description
UPGMB-PIU Ford Police Interceptor Utility (2016+) custom fit grille light brackets (pairs)
PBH45 Push bumper bracket, horizontal 45 degree angle (pair)
XTP4CHMBZ XTP4 lighthead bezel, chrome
XTP4DRUBZ XTP4 lighthead bezel, black rubber
SNPLBKT 90 degree 'L' shaped/universal vertical mount LED bracket (snow plow)
XT4MMNT XTP4 mirror mount Charger (2015+)
LXEXLPBKT- PIU Front license plate bracket
XT4MMNT XTP4 mirror and/or bumper mount bracket
XT4OMMNT-TH15 Mirror mount bracket (pair), Tahoe (2015+)
FOGBKT-TH15 Fog light bracket kit (pair), Tahoe (2015+)
GMBTH-15 Grille bracket (pair), Tahoe (2015+)
XT4GRL Universal bolt-on grill bracket (single)
GMBXT4-F150 Grille mount bracket F150, (2015+)
LXEXLPBKTR-PIU Rear license plate bracket
GMBPIU-15 Grille bracket (pair), Police Interceptor Utility (2015+)
UPRRBKT-PIU Spoiler bracket for the Police Interceptor Utility (and other rear spoilers)
XT4-DL2 90 degree 'L' shaped bracket universal stacked deck light
XTP4DSCHMBZ XTP4 dual stack lighthead bezel, chrome
XT4LBKT 90 degree 'L' shaped bracket
