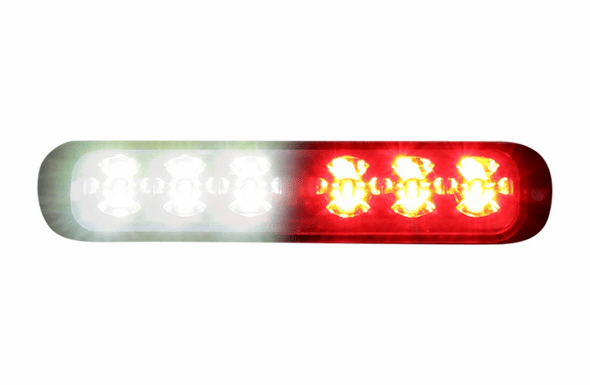

Code 3 XTP6 Multi Color LED Light Head

Code 3 XTP6 Multi Color LED Light Head
Delivers a bright signal in a sleek, low-profile design.
Allows for placement almost anywhere on the vehicle with its compact, waterproof design.
Provides users with a versatile, high-performance exterior light at an affordable price.

Design Features
Single and split models available.
Single color available in Red, Blue, Amber, White, and Green.
Split available in Amber/White, Blue/Amber, Blue/White, Red/Amber, Red/Blue, Red/White.
Single color XTP6 has 30 flash patterns.
Split color XTP6 has 22 flash patterns.
Steady-burn.
Controllable flash pattern output.
Programmable with the Code 3 Lighthead Programmer.
Waterproof IP67 rated.
Syncable with Code 3’s Chase™, MR6, Mega Thin™, and M180™ lights.
Same mounting hole pattern and brackets as the XT lights.
Multiple flash patterns with phase 1 and phase 2 syncing capabilities.

Standard Options
Black bezel standard.
Chrome and black rubber bezels optional.

Specifications
XTP6: 1.4” H x 6.2” L x 0.6” D (36 x 158 x 15 mm).
12VDC.
11 max watts.
Temperature range: -40°F to 158°F (-40°C to 70°C).
SAE J595 Class 1, SAE J575, California Title 13, E/Reg. 65, ECE R10, RoHS,
5-year warranty.

Many models and options available, please call 800-666-6200 or email sales@swps.com for more info.

Model LED Color
XTP6GG XTP single color 6 LED, 12/24V, green/green
XTP6WW XTP single color 6 LED, 12/24V, white/white
XTP6AA XTP single color 6 LED split, 12/24V, amber/amber

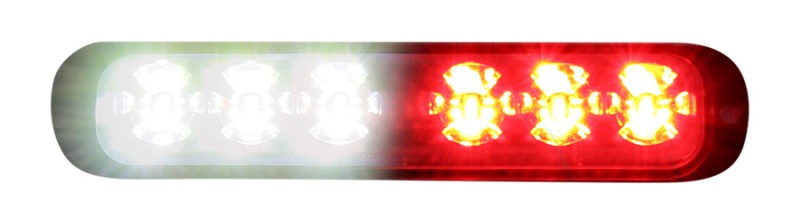

XTP6AW XTP split color 6 LED split, 12/24V, amber/white
XTP6BA XTP split color 6 LED split, 12/24V, blue/amber
XTP6BB XTP single color 6 LED split, 12/24V, blue/blue
XTP6BW XTP single color 6 LED split, 12/24V, blue/white
XTP6RA XTP single color 6 LED split, 12/24V, red/amber
XTP6RB XTP split color 6 LED split, 12/24V, red/blue
XTP6RR XTP single color 6 LED, 12/24V, red/red
XTP6RW XTP split color 6 LED, 12/24V, red/white

Accessories Option
Model Description
S31222M C3100 speaker bracker for Charger (2011+) with LED brackets
LXEXLPBKT- PIU Front license plate bracket
GMBCH11 90 degree 'L' shaped/grille bracket (pair), Charger (2011+)
TLB-CP Trunk lid bracket (single), Caprice (2011+)
GMBEXI 90 degree 'L' shaped/grille bracket (pair), Police Interceptor Utility only (2011+)
XTP6CHMBZ XTP6 lighthead bezel, chrome
XTP6RUBZ XTP6 lighthead bezel, black rubber

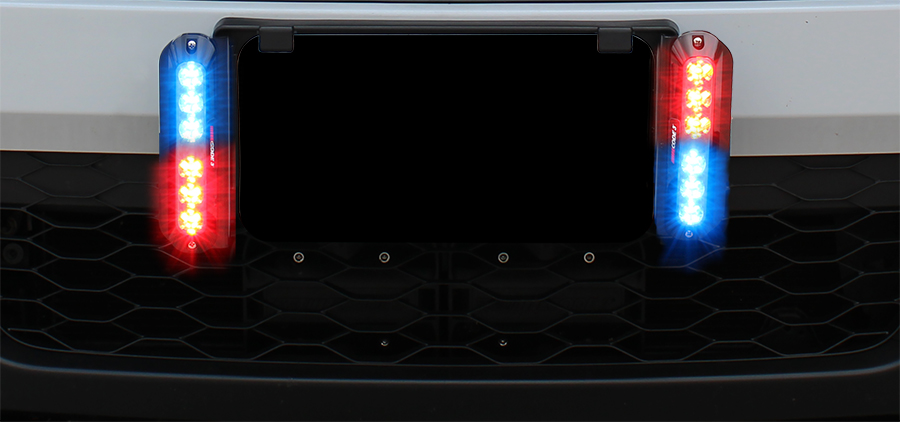

LXEXLPBKT-CH15 License plate bracket with 2" offset of vertical lighthead mount, Charger and F150 (2015+)
XT6GRL Universal bolt-on grille bracket (single)
LXEXLPBKTR-PIU Rear license plate bracket
GMBPIU-15 Grille bracket (pair), Police Interceptor Utility (2015+) (Works on ECO Boost models also)
XTP6LBKT 90 degree 'L' shaped bracket
